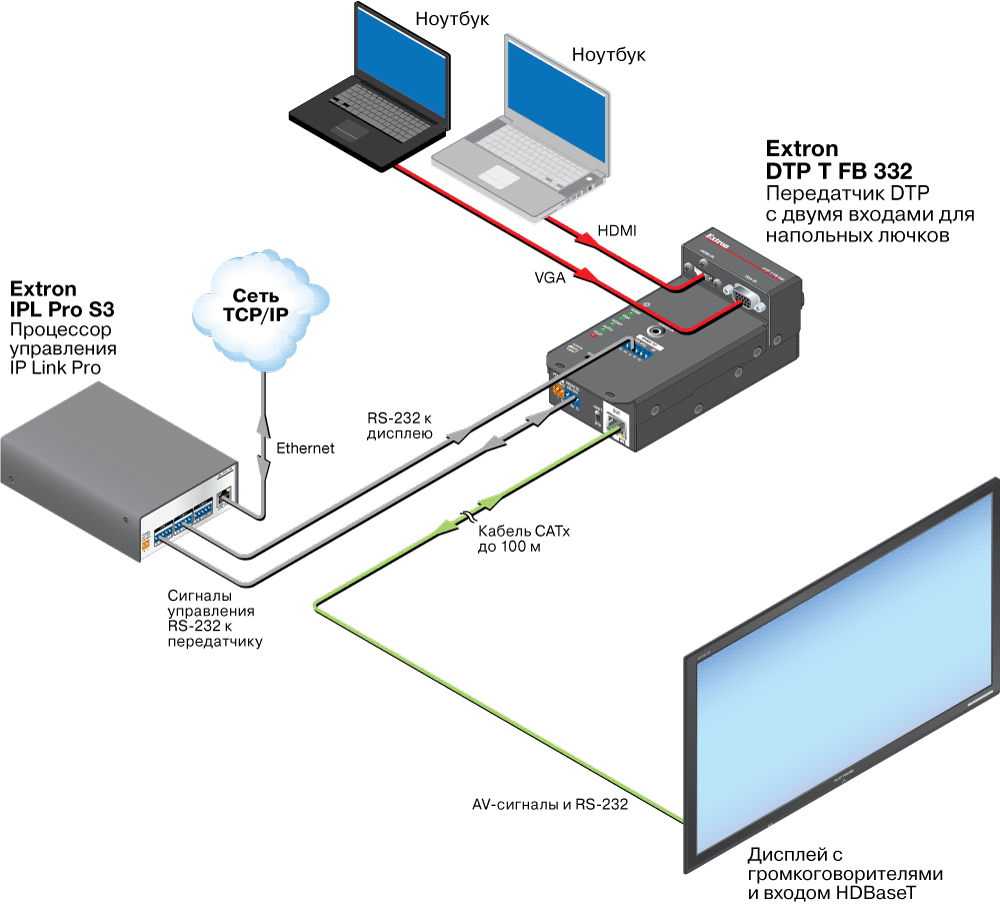

| DTP T FB 332 |
|
| Video |
|---|
| VGA | |
| Gain | Unity |
| Bandwidth | 170 MHz (-3 dB) |
| Crosstalk | -50 dB @ 10 MHz, -30 dB @ 100 MHz |
| Switching speed | <5 ms. (max) |
| HDMI | |
| Maximum data rate | 6.75 Gbps (2.25 Gbps per color) |
| Maximum pixel clock | 165 MHz |
| Resolution range | Up to 1920x1200 or 1080p @ 60 Hz; 2k |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI, HDCP 1.1, CEA-861E |
|
| Video input — HDMI |
|---|
| Number/signal type | 1 HDMI input (or single-link DVI-D with the appropriate DVI-HDMI adapters) |
| Connectors | 1 female HDMI type A |
|
| Video input — VGA |
|---|
| Number/signal type | 1 VGA-QXGA |
| Connectors | 1 female 15-pin HD |
| Nominal level | 0.7 Vp-p for RGB |
| Min./max. level | Analog, 0.3 V to 1.5 Vp-p with no offset |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz to 145 kHz |
| Vertical frequency | 30 Hz to 170 Hz |
| Return loss | <-40 dB @ 5 MHz |
| NOTE | The VGA input is digitized and output as DTP. The VGA signal is not scaled. |
|
|
| Sync — VGA |
|---|
| Input type | RGBHV |
| Input level | 1.9 V to 5.0 Vp-p |
| S/N | >90 dB at maximum input (unweighted) |
| Max. input voltage | 5.0 Vp-p |
|
| Interconnection between transmitter and receiver |
|---|
| Number/signal type | 1 DTP 330 output |
| Connector | 1 female RJ-45 |
| Termination standard | TIA/EIA T568B |
| Transmission distance | Up to 330' (100 m) using shielded twisted pair cable or XTP DTP 24 STP cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (shielded twisted pair) |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
| NOTE | Input and output mode signaling:
DTP: HDMI with embedded audio, analog audio, RS-232 and IR, and remote power
HDBaseT: HDMI with embedded audio plus RS-232 and IR |
|
|
| Audio |
|---|
| Gain | Unbalanced output: 0 dB; balanced output +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | 0.01% @ 1 kHz at nominal level |
| S/N | >90 dB, at maximum input (unweighted) |
| Crosstalk | <-45 dB @ 20 kHz, or -72 dB @ 1 kHz or below |
| Stereo channel separation | >80 dB @ 1 kHz to 20 kHz |
|
| Audio input |
|---|
| Number/signal type | 1 analog stereo, unbalanced or
1 digital audio, embedded in the HDMI |
| Connectors | 1 female 3.5 mm mini stereo jack
1 female HDMI Type A (shared with video input) |
| Source formats | |
| HDMI | LPCM up to 7.1/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel |
| Analog | Analog stereo audio |
| Impedance | 10k ohms, DC coupled |
| Nominal level | -10 dBV |
| Maximum level | +6dBV, unbalanced |
| CMRR | >60 dB typ @ 1 kHz |
| Input gain adjustment | -18 dB to +24 dB, 1 dB steps, adjustable per input |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output |
|---|
| Number/signal type | 1 analog audio over DTP signal, or
1 embedded digital audio over DTP signal |
| Connectors | 1 RJ-45 jack |
|
| Communications — switcher |
|---|
| Serial control port | RS-232 via (1) 3.5 mm, 3 pole captive screw connector |
| Serial control pin configuration | Pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd |
| Baud rate and protocol (RS-232) | 9600 baud, 8 data bits, 1 stop bit, no parity |
| USB control port | 1 front panel female mini USB, type B |
| USB standards | USB 2.0, high speed |
| Program control | Extron Simple Instruction Set (SISTM) |
|
| Communications — RS-232/IR over TP |
|---|
| NOTE | Protocol is mirrored between the connected DTP 330 Rx and the OverDTP output port. Signals from a control device pass into the Over TP port, are embedded with the DTP signal, and sent to the DTP 330 Rx endpoint for control of remote sink and source devices.
The Over TP port is a pass-through connection to the DTP endpoint. There is no RS-232 or IR insertion from the DTP T FB 332 control port to the Over TP port. |
|
| Serial control pass-through port | 1 RS-232 and IR via (1) 3.5 mm, 5-pole captive screw connector |
| Serial control pin configuration | Pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd |
| Baud rates | 300 to 115200 baud |
| Protocol | 8 or 7 data bits
1 or 2 stop bits
no parity (default)
even or odd parity |
| IR pass-through control port | TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz |
| IR control pin configuration | 3 = GND, 4 = IR Tx, 5 = IR Rx |
|
| General |
|---|
| Power supply | External
Input: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Device | 5.2 watts |
| Device and power supply | 6.8 watts |
| Remote power budget | 12 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 17.6 BTU/hr |
| Device and power supply | 22.9 BTU/hr |
| Mounting |
| Floor box mount | Ackermann GB3/OBO Betterman floor box, MK Electric CableLink Plus Single Pan floor box, MK Electric CableLink Plus Modular floor box, ElectraPlan floor box, and PUK floor box mountable |
| NOTE | See the DTP T FB 332 User Guide for mounting considerations. |
|
| Enclosure type | Metal |
| Enclosure dimensions | 2.3" H x 2.8" W x 5.2" D*
(5.9 cm H x 7.2 cm W x 13.2 cm D)
(Dimensions exclude connectors)
* Depth is 6.1" (15.5 cm) including mounting tabs |
| Product weight | 1.1 lbs (0.5 kg) |
| Regulatory compliance | CE, c-UL UL, CE**, C-tick, FCC Class A**, ICES, VCCI,
Complies with the appropriate requirements of RoHS, WEEE |
| NOTE | **CE and FCC testing is conducted with STP (shielded twisted pair) cable. |
|
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5355-D12) |
